1

Dia.of screw

mm

50

2

Screw L/D

21

3

Shot volume

cm3

400

4

Injection weight

g

280

5

Max.Injection pressure

Mpa

167

6

Max.screw stroke

mm

210

7

Max.screw speed

rpm

10-260

8

Heationg capacity

Kw

10

9

No.of heating zone

Qty

4

10

Clamping&blowing system

11

Clamping force of injection

KN

500

12

Clamping force of blowing

KN

150

13

Opening stroke of mold planten

mm

120

14

Lifting height of rotary table

mm

70

15

Max.platen size(L×W)

mm

580×390

16

Min.mold thickness

mm

240

17

Heating capacity of mold

Kw

2.5

18

Stripping system

19

Stripping stroke

mm

220

20

Driving system

21

Motor power

Kw

22

22

Hydraulic pressure

Mpa

14

23

Product range

24

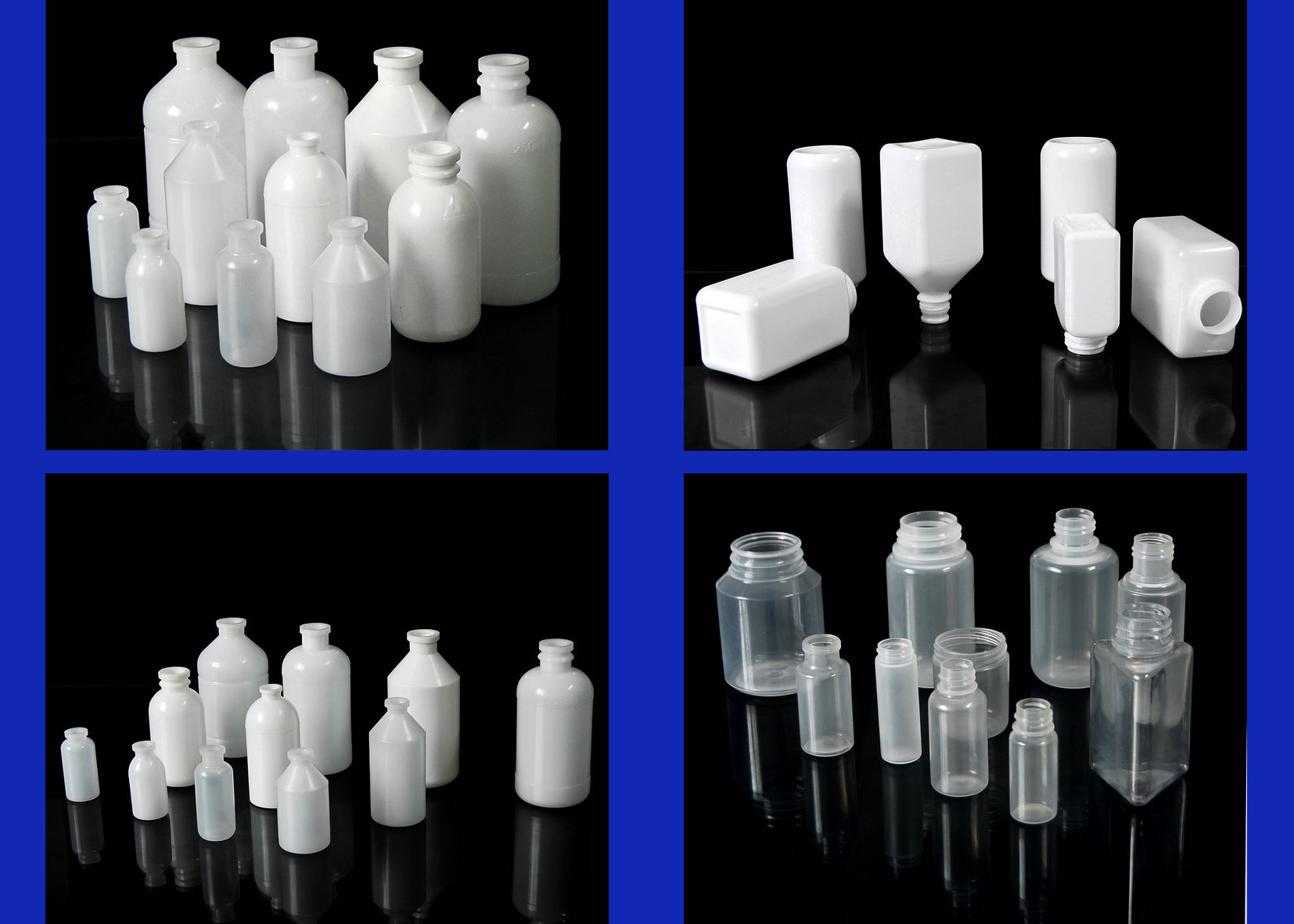

Suitable bottle range

L

0.005~0.8

25

Max.bottle height

mm

≤210

26

Max.dia.of bottle

mm

≤100

27

Other

28

Dry cycle

s

3.2

29

Min.air pressure

Mpa

1.2

30

Discharge rate of compressed air

m3/min

>0.8

31

Water flowage

m3/h

3.5

32

Total rated power without mold heating

Kw

30

33

Dimension(L×W×H)

mm

3800×1600×2230

34

Net weight

T

7.5
