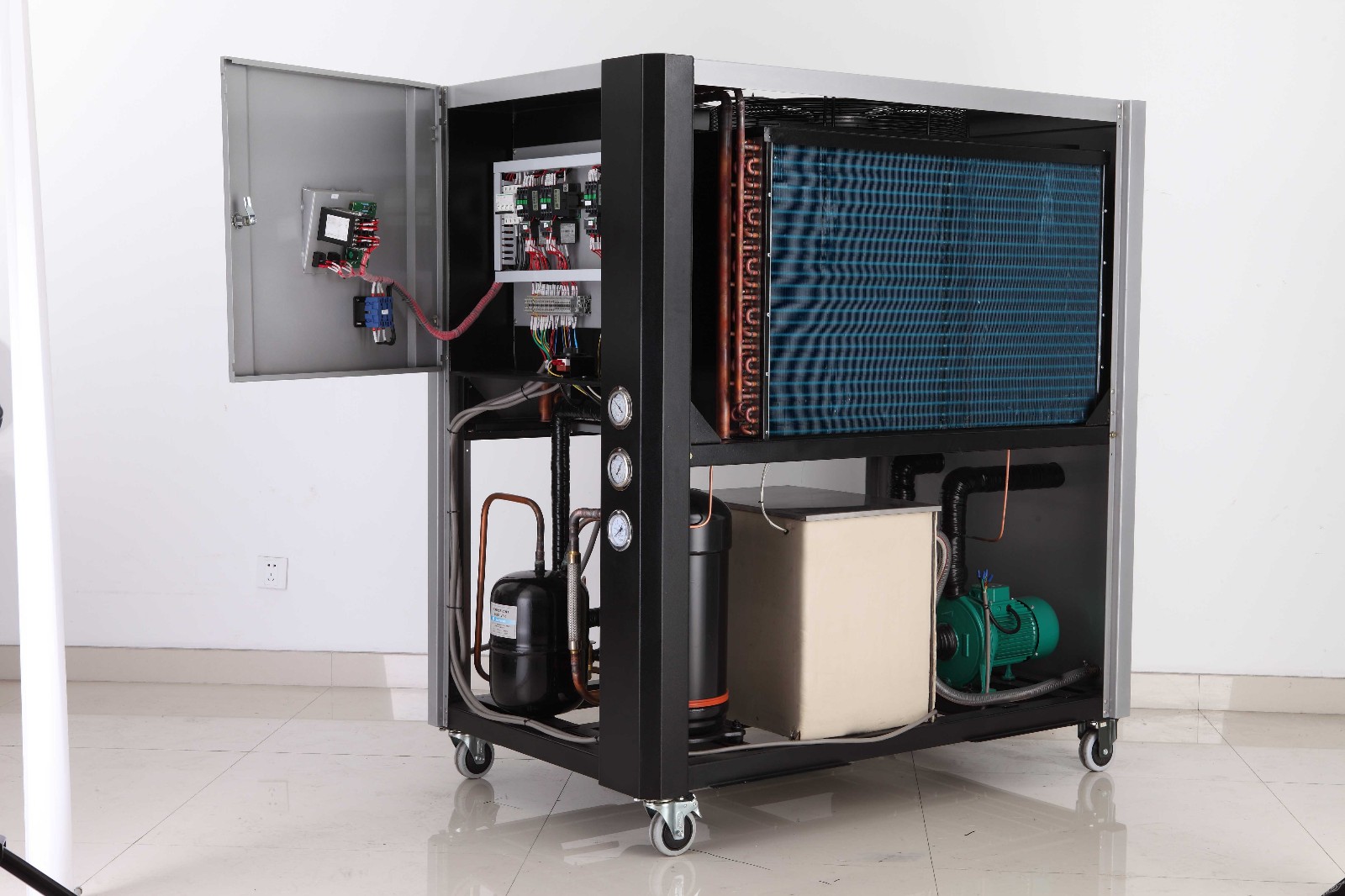

Scroll & Piston Compressor Water Chiller

Detailed：Best quality blow molding machine made in China

Scroll & Piston Compressor (5-20HP)Water Chiller Techcnical Parameter Sheet

1	POWER	5HP	8HP	10HP	12.5HP	15HP	20HP	REMARK
2	MODEL	FS14WSH	FS26WSH	FS32WSH	FS44WSH	FS54WSH	FS74WSH
3	COMPRESSOR	COPELAND	COPELAND	DANFOSS	DANFOSS	DANFOSS	BITZER	ANY BRAN
4	REFRIGERANT	R22/R404A/R134A
5	VOLTAGE	380V/3/50HZ 380V/3/60HZ 220V/3/60HZ 460/3/60HZ
6	AIR-COOLED CONDENSER	FN-47	FN-72	FN-100	FN-120	FN-145	FN-200	AIR-COOLED
7	CONDENSER FANS	Ø450mm	Ø500mm	Ø450mmx2	Ø450mmx2	Ø500mmx2	Ø550mmx2	380V/3/50HZ
8	LIQUID TANK	5L	8L	10L	12L	16L	20L	CHINA BRAND
9	DRY FILTER	Ø10mm	Ø16mm	Ø16mm	Ø16mm	Ø22mm	Ø22mm	DANFOSS
10	SOLENOID VALVE	Ø10mm	Ø16mm	Ø16mm	Ø16mm	Ø22mm	Ø22mm	DANFOSS
11	EXPANSION VALVE	5RT	7.5RT	10RT	12RT	15RT	20RT	DANFOSS
12	BALL VALVE	Ø12mm	Ø22mm	Ø22mm	Ø22mm	Ø28mm	Ø28mm	CHINA BRAND
13	BALL VALVE	Ø22mm	Ø28mm	Ø28mm	Ø28mm	Ø42mm	Ø42mm	CHINA BRAND
14	EXCHANGE PLATE	15KW	27KW	32KW	44KW	55KW	74KW	CHINA BRAND
15	WATER PUMP	Q:3t/h(H:21m)	Q:5t/h(H:21m)	Q:6t/h(H:21m)	Q:9t/h(H:21m)	Q:12t/h(H:21m)	Q:14t/h(H:21m)	CHINA BRAND
16	WATER VALVE	Dn25x2	Dn32x2	Dn32x2	Dn40x2	Dn40x2	Dn40x2	CHINA BRAND
17	STOP VALVE	Dn25	Dn32	Dn32	Dn40	Dn40	Dn40	CHINA BRAND
18	SOFT CONNECTOR	Dn25x2	Dn32x2	Dn32x2	Dn40x2	Dn40x2	Dn40x2	CHINA BRAND
19	BODY	1	1	1	1	1	1	TECHCO
20	WIRING CONTROL BOX	1	1	1	1	1	1	TECHCO
21	PRESSURE GAUGE	2	2	2	2	2	2	CHINA BRAND
22	H/L PRESSURE CONTROL	1	1	1	1	1	1	DANFOSS
23	FLOW SWITCH	1	1	1	1	1	1	CHINA BRAND
